Section 17 - GWR signalbox bell codes

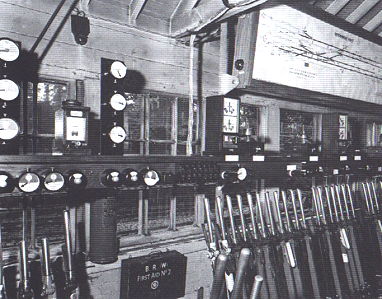

Maidenhead West Signalbox in 1961
Description Beats
Call Attention 1
Emergency call attention, number of beats in rapid succession

'Is Line Clear?' for:
Express passenger train, express diesel railcar, breakdown van train going to clear the line, 'light engine' going to assist disabled train, empty coaching stock timed at express speed? ('A' headlamps) 4

Ordinary passenger train, 'mixed' train, breakdown van train not going to clear the line? ('B' headlamps) 3 - 1

Branch line train (only on main line to junction)? ('B' headlamps) 1 - 3

Rail motor-car, auto-train or streamline railcar? ('B' headlamps) 3 - 1 - 3

Express freight, or ballast train conveying a stipulated number of vacuum-braked vehicles connected by vacuum pipe to the engine and authorised to run at a maximum speed of 35 m.p.h.? ('C' headlamps) 2 - 2 - 3

Parcels, newspaper, fish, meat, fruit, milk, horse, cattle or perishable train composed entirely of vacuum-fitted stock with the vacuum pipe connected to the engine? ('D' headlamps) 5

Express freight, livestock, perishable or ballast train partly vacuum fitted with not more than one-third vacuum braked vehicles connected by vacuum pipe to the engine? ('D' headlamps) 4 - 4

Empty coach stock train not specially authorised to carry 'A' headlamps? ('D' headlamps) 2 - 2 - 1

Express freight, fish, meat, fruit or cattle train, ballast train or breakdown van train not proceeding to an accident? ('E' headlamps) 3 - 2

Through fast freight train conveying through load? ('F' headlamps) 1 - 4

Light engine or light engines coupled together or engine and brake van? ('G' headlamps) 2 - 3

Freight, mineral or ballast train or train of empties carrying through load to destination? ('H' headlamps) 3 - 4 - 1

Freight, mineral or ballast train stopping at intermediate stations? ('J' headlamps) 3

Train conveying out of gauge or exceptional load? ('J' headlamps) 2 - 6 - 2

Branch freight train (only on main line to junction)? ('K' headlamps) 1 - 2

Ballast train, freight train or inspection train requiring to stop in section? ('K' headlamps) 1 - 2 - 2


Trolley required to go into or pass through tunnel 2 - 1 - 2

Train approaching 1 - 2 - 1

Train entering section 2

Section clear but station or junction blocked 3 - 5 - 5

Line clear to clearing point only 2 - 2 - 2

Engine assisting in rear of train 2 - 2

Train out of section, or obstruction removed 2 - 1

Engine arrived 2 - 1 - 3

Train drawn back clear of station 3 - 2 - 3

Blocking back inside home signal 2 - 4

Blocking back outside home signal 3 - 3

Blocking back outside home signal for train already in section 1 - 2 - 3

Shunt train for following train to pass 1 - 5 - 5

Opening signal box 5 - 5 - 5

Closing signal box 7 - 5 - 5

Testing bells 16

Time signal 8 - 5 - 5

Lampman or fogman required 9 - 5 - 5

Testing slotted signal 5 - 5 - 5 - 5

Take off slot train waiting 3 - 4

Cancel 'Is Line Clear?' 3 - 5


Emergency bell signals:
Obstruction danger 6

Stop and examine train 7

Train passed without tail lamp
      To box in advance
9
      To box in rear 4 - 5

Train divided 5 - 5

Train or vehicles running away on right line 4 - 5 - 5

Train or vehicles running away on wrong line 2 - 5 - 5


Taken from 'GWR Regulations for Train Signalling on Double Lines', 1936
